Description

Car Battery

The batteries are an essential component of any vehicle; they are the power storage components of the car. Whether a fuel engine or an electric vehicle, you can only start the car if the battery is functioning. The batteries are more than a regular box, they store energy. So, upon ignition, they release the stored energy, allowing the car to function. In this article, we will discuss parts of car batteries in detail.

What is a Car Battery?

A battery refers to any device that converts chemical energy to electrical energy. The car or automobile battery stores chemical energy but immediately converts it to electricity upon ignition.

The typical car battery is rechargeable and designed to be a wet-cell battery. Regardless of the car type, all batteries perform similar operations – power the vehicle and all its electrical components.

When you start your car, the battery supplies electric current that initiates the internal chemical engines needed to drive the car. In addition, other electronic parts of the vehicle, like lights, radios, wipers, etc., require the battery to function optimally.

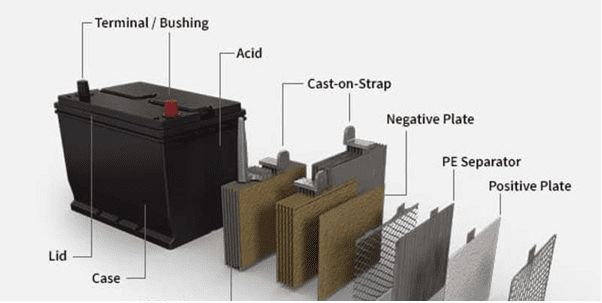

Components of a Typical Car Battery

A typical automobile battery is enclosed in a battery box or case. However, the interior parts of the car battery consist of different components. Below are the essential car battery parts.

Battery Acid

The acid is a solution of sulfuric acid and water (36 to 40 percent). The resulting mixture serves as the electrolyte that triggers the chemical reaction, which produces the electric current that powers the vehicle. It is often of high purity, as the presence of contaminants may alter its effectiveness for car power generation.

The acid and water react upon igniting the car, producing the suitable voltage needed to kick-start the vehicle. The voltage produced will be insufficient for driving the car engine if the battery is weak.

Battery Terminal

It is also called battery bushing. The battery terminal is the connection point linking the battery with the car’s electrical components. Like any electrical device, it has two terminals – the positive and negative straps of the battery end cells.

Battery Case

Both fuel and electric vehicles have parts of the batteries enclosed within a box. The case protects the contents and parts of the car battery. For fuel batteries, cast-on-straps are often designed with polypropylene resins. In EVs, the battery enclosure box is usually created with aluminum alloys. The battery case offers protection for its contents and minimizes the impact effects on the battery, thereby extending its life.

Battery Plates

A typical car battery consists of negative and positive plates. Either plate consists of a metal grid, though the positive end contains lead dioxide material, with the negative end having a spongy lead. Either plate has a cast-on strap on top, linking each component to the battery cells.

Battery Separator

As the name indicates, the separator creates a distinction between the positive and negative plates. Also, it is often made of polyethylene or other plastic polymers.

Different Types of Auto Batteries

The type of battery your automobile uses may affect the overall performance. Therefore, it is vital that you select the correct time of batteries for your car. Below is a brief review of the different kinds of vehicle batteries to give you an insight into which is best for your auto engine.

Primary Cell Batteries

They are single-use batteries – the typical AA or triple-a batteries – often used in remotes. They are alkaline batteries made with song and carbon, and it is unlikely that you will find these kinds of batteries in automobiles. The batteries are already reducing in popularity because they are not rechargeable and must be disposed of after use.

Secondary Cell Batteries

Unlike primary cell batteries, secondary cell batteries are rechargeable, supporting use for extended periods. They consist of several electrolytic materials – the electrolyte and electrodes – essential for powering the vehicle. They are the go-to battery type for automobiles, the common ones being; lead acid batteries, lithium-ion (Li-ion) batteries, and lithium-iron-phosphate batteries.
